In industrial environments, a fire can escalate within seconds. Valves, actuators, and emergency systems must perform reliably under extreme heat — with no margin for failure. UL 1709 certification is the industry's most rigorous standard for ensuring that fire protection systems can deliver under those conditions. This article explains what it means, why it matters, and what it takes to earn it.
UL 1709: The Industry Benchmark for Extreme Fire Protection
UL 1709 is officially known as the Standard for Rapid Rise Fire Tests of Protection Materials for Structural Steel. It was developed to evaluate whether a protective material can truly shield critical equipment when it matters most — during a fast, intense fire event.

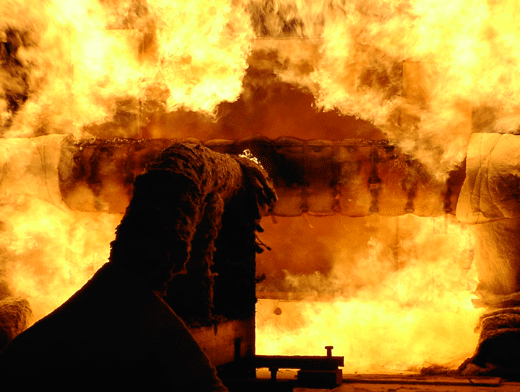

What makes UL 1709 particularly rigorous is its fire curve: furnace temperatures escalate to over 1,000°C within the first few minutes of exposure and remain at that level for the entire test duration. This simulates the kind of extreme, fast-moving fires that can occur in industrial environments such as oil and gas facilities, petrochemical plants, and refineries.
For companies like NUTEC Protective Concepts, achieving UL 1709 certification is not just about meeting a regulatory requirement. It is a demonstration that their fire protection systems — such as the ProSol PFP Fire Jacket — have been independently tested and verified under extreme conditions.
Why is it called a "Rapid Rise" Test?
The "Rapid Rise" designation defines a fire exposure unlike any other standard. Furnace temperatures surge to over 1,000°C within the first 5 to 10 minutes and remain at that level for the full 60-minute duration. This is not a slow burn — it is the kind of catastrophic fire scenario that industrial facilities must prepare for.
This aggressive curve reflects real-world hydrocarbon fire behavior, where fuels ignite rapidly and temperatures escalate far faster than in structural building fires. Any protection system that passes this test has been proven against a worst-case scenario.
Why UL 1709 Certification Matters for Removable Insulation Jackets?
Valves, actuators, and instrumentation are not passive structural components — they have a direct operational role in your facility. If fire compromises them before they can perform their function, the consequences can range from uncontrolled process releases to major safety incidents.
A removable insulation jacket certified under UL 1709 provides documented, third-party verified proof that it can maintain equipment integrity during a high-intensity fire. The removable design adds a critical practical advantage: the jacket can be easily installed, removed for maintenance or inspection, and reinstalled — without compromising its protective performance.
For engineers and asset owners, specifying a UL 1709 certified jacket means making a decision backed by independent test data, not assumptions.
What are the Pass/Fail Criteria for UL 1709?
To earn a UL 1709 rating, a protection system must meet two strict temperature thresholds throughout the full fire exposure period:
- Average temperature of the protected equipment: must not exceed 538°C
- Maximum temperature at any single measurement point: must not exceed 649°C
The ProSol PFP Fire Jacket System was tested on a 4-inch steel ball valve and actuator at Southwest Research Institute (SwRI) and passed with a significant margin — recording a maximum surface temperature of only 203.3°C after a full 60 minutes of exposure. That is less than one third of the allowed maximum. The system achieved a confirmed 1-hour fire resistance rating.
What is the critical role of these Jackets during an emergency shutdown event?
During an emergency shutdown (ESD) event, valves and actuators must operate reliably to isolate process flow and prevent escalation. If a fire compromises the actuator before it can complete its function, the consequences can be catastrophic. A UL 1709 certified fire jacket buys critical time — keeping the actuator within functional temperature limits long enough for the ESD sequence to complete safely.
Which industries and equipment require this level of protection?

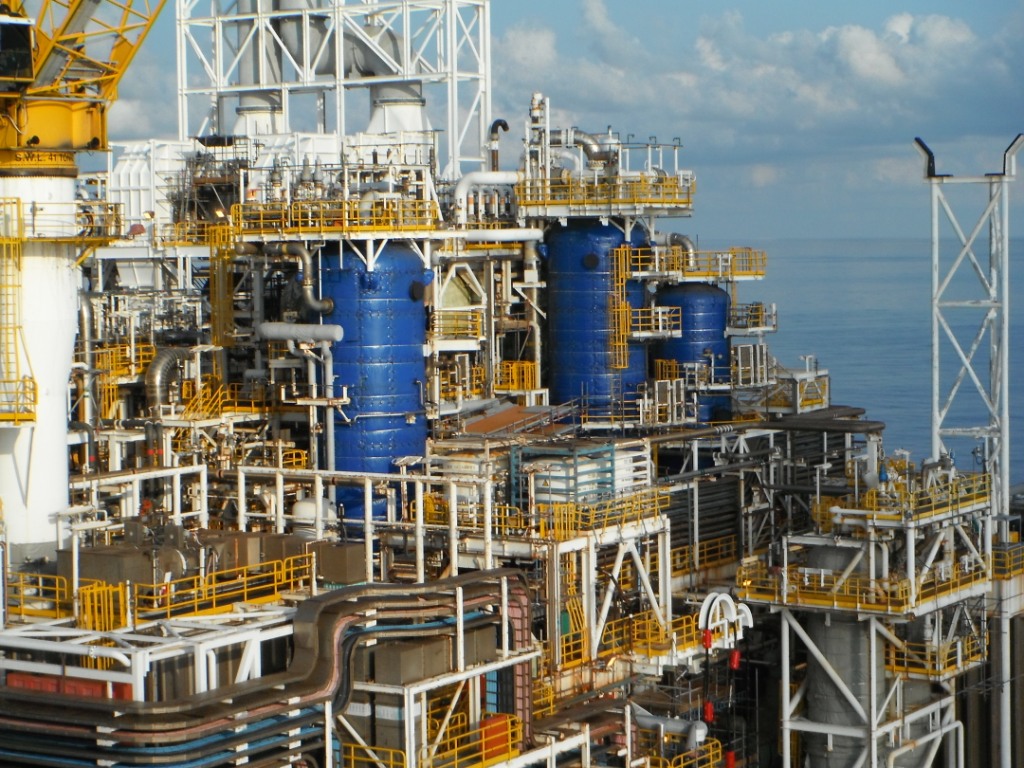

UL 1709 level fire protection is typically required in industries where hydrocarbon fires or rapid-rise fire scenarios are a recognized hazard: oil and gas production, petrochemical processing, refining, power generation, and offshore platforms.
The most common equipment requiring this protection includes valves, actuators, pressure vessels, structural supports, piping systems, and critical instrumentation located in fire risk zones. If failure of that equipment during a fire event could trigger a safety incident or production loss, it is a candidate for UL 1709 certified protection.
The economic case for UL 1709 Certified Fire Protection
Beyond regulatory compliance, UL 1709 certified fire jackets protect high-value equipment from fire damage, significantly reducing replacement and repair costs. They also minimize unplanned downtime — which in process industries can represent millions of dollars per day.
Additionally, certified fire protection demonstrates due diligence to regulators, insurers, and stakeholders — reducing liability exposure and potentially impacting insurance premiums. When you specify a certified system, you are not just buying a product; you are documenting a defensible decision.
